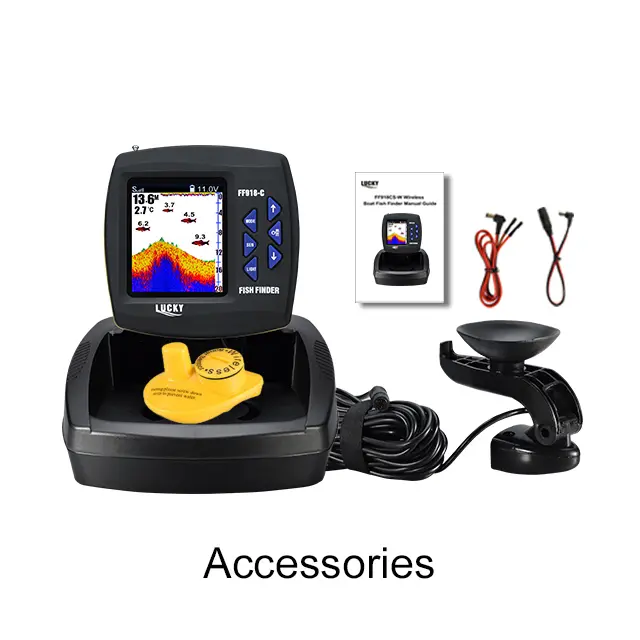

FF918 SERIES
The FF918 series is extremely popular among bait boat users and crappie fishermen. With an individually powered wireless long-distance sensor, it can be connected to all types of bait and fishing boats. It comes with multiple options for base size and screen colors. Lucky® fish finder developed the corresponding Y3 aluminum transmitter signal box that reduces interference and enlarges the signal receiving range significantly.
PARAMETER

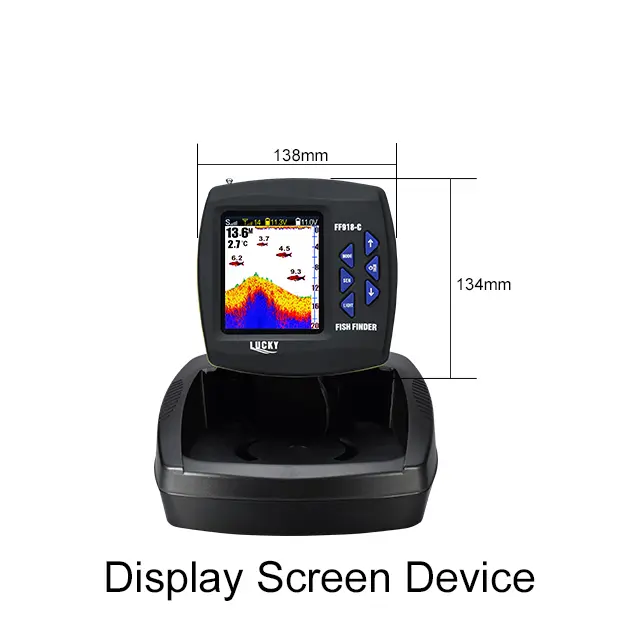

- Model：FF918C-WT
- Screen Size：3.5inch
- Battery:8XAA Battery
- Operational Temperature：-10~50℃

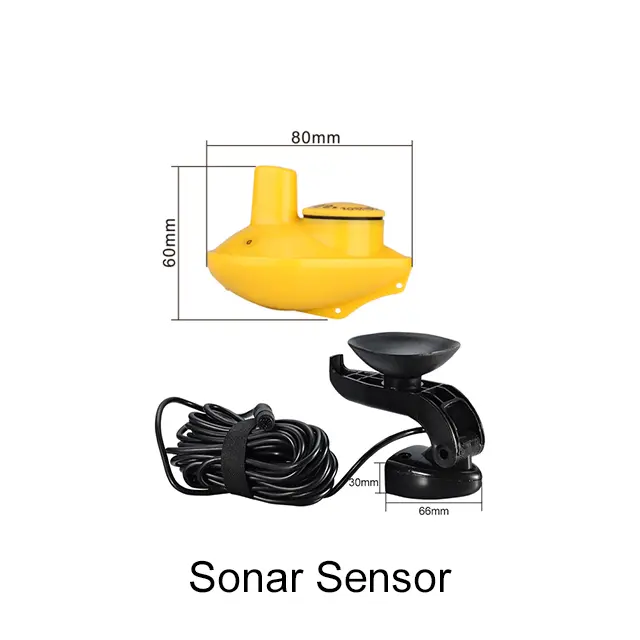

- Probe：Wireless Probe + Cable Probe
- Wireless Probe:
- Depth Range：0.7-45m
- Sonar Frequency/Beam Angle：90 degree in 125KHZ
- Wireless Operational Range：200m
- Cable Probe:
- Depth Range：0.7-180m
- Sonar Frequency/Beam Angle：45 degree in 200KHZ
- Scenario:Boat Fishing
PRODUCT HIGHLIGHTS
·Display Fish Location
·Display Water Depth
·Display Water Temperature
·Display Underwater Contour
·Enlarge Certain Range Of Depth Information
·Beep Notification Of Fish Activity
·Carrying Both Wireless+Cable Probe
·Colored Dot-Matrix Detailed Display
·Rechargeable Lithium Battery
·Latest Operating System (CZ 20.1.8)
·Fish Size Indication
·Reef Warning
RELATED PRODUCTS
HOW SONAR WORKS?
The sonar fish finder sends and receives ultrasonic signals to scan underwater biomes. It displays the lakebed on a handheld device through sonar imaging. The fish finder is an important piece of the fisherman’s arsenal, and it has become a common accessory around the world. We designed our Lucky products to be wireless, light, hand-held, and suitable for single-person shore fishing, ice fishing, and kayak fishing.
BOAT FISHING WITH WIRELESS FISH FINDER
1. Firmly mount the receiving host on the ship 2. Tie the fishing line to the small hole on the probe for easy recovery 3. Throw the probe into the water by hand or with a fishing rod 4. View the sonar map to analyze key information including fish position and water depth 5. If it is a powered kayak or a vessel with an engine, keep the probe as far away from the engine as possible to avoid interference.
BOAT FISHING WITH TRANSDUCER FISH FINDER
1. Mount the receiving host on the ship 2. Connect the probe cable to the receiving host 3. Install the probe on the bottom of the boat or hang it off the side 4. Ensure that the probe is fully submerged 5. View the sonar map to determine key information including fish position and water depth 6. For dual-frequency models, the detection angle can be adjusted to expand or deepen the detection range 7. If it is a powered kayak or boat, keep the probe as far away from the engine as possible to avoid interference.
PRODUCT FAMILY PACKAGING DESIGN
According to the different product series, the latest original packaging design is based on the basic color of the product to be displayed in the set of a complete product family, so that the product series look smarter and eye-catching. (If you need to customize your product packaging, please provide packaging design to us, we can then complete the production of customized packaging for you. Conditions apply.)

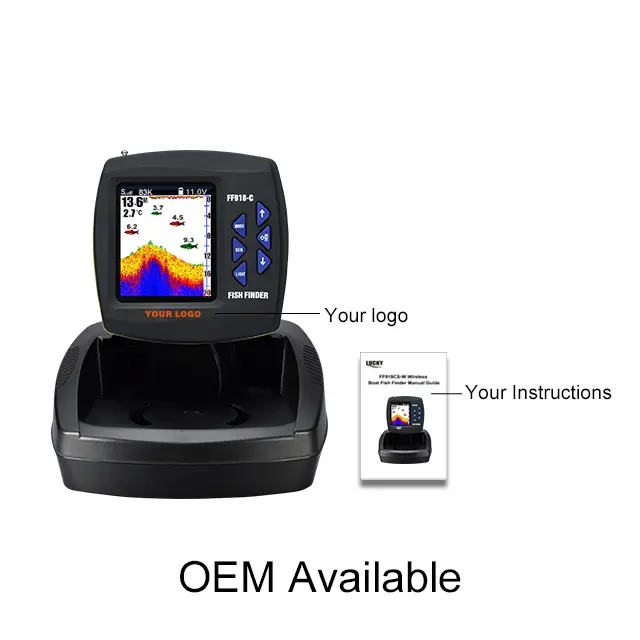

OEM CUSTOMIZATION
Customers can design the packaging of any products to guarantee the uniqueness of merchandise. You can contact us by sending inquries for a package customization quote. If the number of customized units reaches 500, you will be exempt from costs.
PACKING DETAILS
When you place an order, try to choose the order quantity in multiples of 10 or 20. This can fill the outer box so that the package becomes a whole and avoid product damage during the logistics process. For e-commerce customers, you can contact us to inquire about our e-commerce packaging method, the single piece will be smaller and more suitable for express delivery.
